Alloy Steel ASTM A182 F22 Flanges are the best choice for the industries which require high temperature, pressure, and demanding operating conditions. They are known for their excellent stability and superior mechanical strength, these flanges play a critical role in keeping piping systems secure, leak-free, and efficient. If you are thinking of sourcing it or for export projects this will guide help you to make your decision.
What are Alloy Steel A182 F22 Flanges?

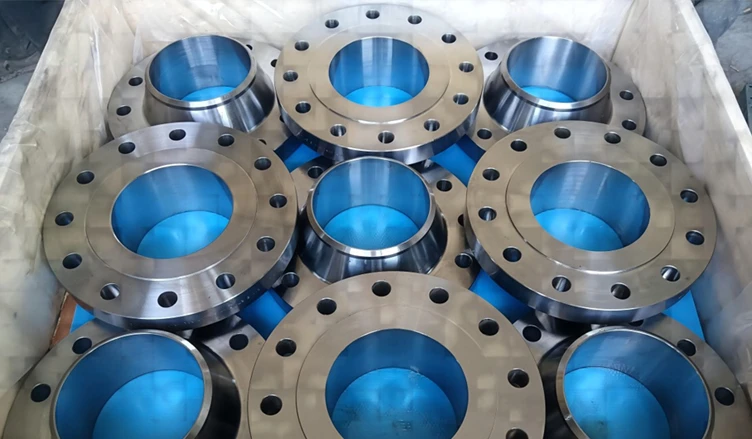

Alloy Steel ASTM A182 F22 Flanges are forged flanges and are a part of ASTM A182 standard. It is made from a combination of chromium and molybdenum low-alloy steel grade designed specifically for high-temperature and high-pressure environments. Their chromium content helps them protect against oxidation, scaling, and chemical corrosion, and molybdenum content provides them with additional strength making them suitable for a wide range of industrial applications which involves thermal cycling. The types of flanges made from F22, such as weld neck flanges, slip-on flanges, blind flanges, etc., are engineered in such a way that they provide secure connections to systems that handle steam, fluids, and gases under high temperatures.
Why choose Alloy Steel ASTM A182 F22 Flanges?
Choosing Alloy Steel ASTM A182 F22 Flanges comes up with several key features. These key features are:
· Exceptional high-temperature strength
· Superior resistance to scaling and oxidation
· Strong mechanical and metallurgical stability
· Ideal for high-pressure and high-stress environments
· Versatile for different types of flange configurations
· Reduced maintenance needs and extended service life
Applications of Alloy Steel ASTM A182 F22 Flanges:
· Oil and gas processing units
· High-pressure steam pipelines
· Power generation turbines
· Chemical and fertilizer plants
· Heat exchanger systems
· Industrial boilers and pressure vessels
Specifications of Alloy Steel ASTM A182 F22 Flanges:
Specifications: Alloy Steel ASTM A182 F22 Flanges
Alloy Steel F22 Flanges Standards: ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
SA 182 F22 Material Grade: ASTM / ASME A182 F1 / F5 / F9 / F22 / F12 / F22 / F91
AS A182 F22 RTJ Flanges Wall Thickness: SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS.
A182 F22 Material Class/ Pressure: 150#, 300#, 400 #, 600#, 900#, 1500# & 2500#
A182 Gr F22 Flanges Dimension: 150#, 300#, 600#, 900#, 1500#, 2500#. PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Grade F22 Flanges Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A182 F22 Pipe Flanges Size: ½” to 36″
Chemical Composition of Alloy Steel ASTM A182 F22 Flanges:
Grade
C
Mn
Si
S
P
Cr
Mo
ASTM A182 F22
0.15
0.3 - 0.6
0.5 - 1
0.03
0.03
8 - 10
0.9 - 1.1
Mechanical Properties of Alloy Steel ASTM A182 F22 Flanges:
Grade
Tensile Strength (Mpa)
Yield Strength (Mpa)
Elongation %
A182 F22
275
485
20
Conclusion: ASTM A182 F22 flanges are built to deliver reliable performance in demanding conditions. Their durability, corrosion resistance, and ability to withstand thermal stress make them a foundation of high-temperature industrial systems. For industries seeking long-term performance, cost effective, and durable products, F22 alloy steel flanges provide unmatched value and dependability.
